Manifold Troubleshooting Guide: Diagnosing Leaks, Pressure Irregularities, and Valve Failures

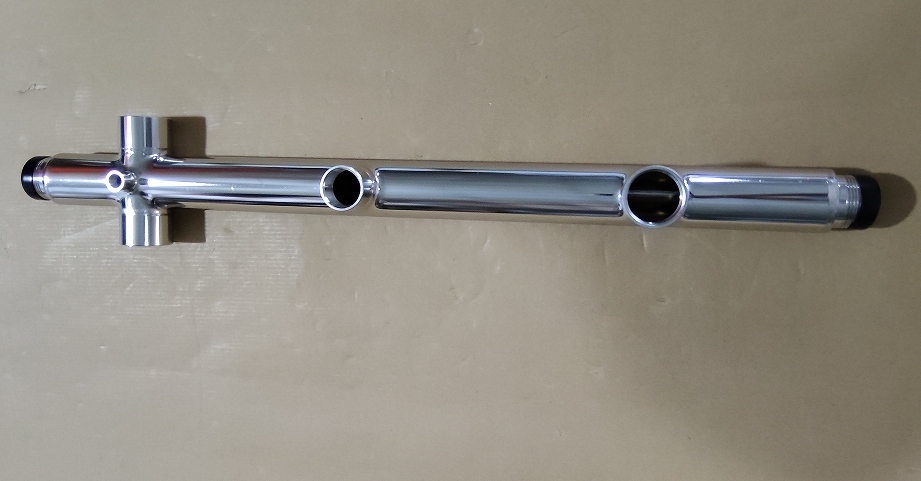

Manifolds in gas distribution, pneumatic, and hydraulic systems provide a continuous, reliable supply of fluid by linking multiple sources together. When functioning correctly, they ensure operational continuity and safety. However, like any complex mechanical system, manifolds are prone to specific failures that can disrupt workflows and, in worst-case scenarios, create hazardous conditions

Safety First — The Non-Negotiable Foundation

Before touching a single valve or gauge, safety must be the paramount concern

• Personal protective equipment (PPE): Safety glasses, gloves, and specialized gear as required

• Ventilation: Ensure the area is well-ventilated, especially with inert or flammable gases

• Knowledge of the gas/system: Understand specific hazards and have system schematics available

• Depressurization: Systems must be safely isolated and depressurized before repair; follow lock-out/tag-out procedures

• When in doubt: Evacuate and call a professional

Common Problem #1 — Leaks

Leaks are the most frequent and potentially dangerous issue. They can lead to gas loss, pressure drops, environmental hazards, and fire or toxicity risks

Symptoms:

• Gradual or sudden drop in system pressure

• Audible hissing sound (not always present)

• Increased cylinder changeover frequency without increased usage

• For inert gases: dizziness or oxygen deficiency alarms

• For flammable gases: smell (if odorized) or gas detector alarms

Troubleshooting Procedure

1. Preliminary checks: Verify downstream equipment isn't consuming gas unexpectedly. Close the main supply valve. If the manifold gauge continues to drop, the leak is upstream; if it stabilizes, the leak is downstream.

2. Identifying the leak source: Use non-corrosive leak detection solution or soapy water. Never use a flame. Primary suspects:

• Cylinder connections (pigtails) and nut connections

• Check valve seats and internal seals

• Pressure regulator diaphragms and seals

• Gauge connections

• Threaded fittings and welds

3. Resolution: Tighten loose connections (do not over-tighten), replace damaged components, replace degraded seals.

Common Problem #2 — Valve Leaks

Piston valve/isolation valve leaks occur when the valve is closed. Close the hand wheel fully and tighten bonnet bolts evenly to compress the valve sealing rings against the body and piston. This process can be repeated until the bonnet touches and seats on the body — this indicates sealing rings are worn and need replacement. Prolonged internal leakage can cause scratches/wear on the metallic piston or resilient sealing rings, requiring replacement -8.

Maintenance Procedure for Isolation Valve Internals -

1. Close manifold for maintenance

2. Loosen and remove bonnet nuts

3. Pull complete bonnet assembly out of valve body

4. Remove valve sealing rings, valve washers, and lantern bush using a packing hook

5. Replace new sealing rings, lantern bush, and valve washers in the order removed

6. Fit back bonnet assembly

Preventative Maintenance Strategy

A well-designed manifold anticipates service needs

• Modular valve cartridges: Let technicians swap faulty valves without draining the entire system

• Isolation plugs: Block off inactive ports, reducing fluid loss during servicing

• Access ports: Permit in-situ calibration of pressure transmitters or thermocouples

• Non-Destructive Testing (NDT): Dye-penetrant or ultrasonic wall-thickness checks identify micro-cracks early
