Surface finish is one of the most underappreciated specifications in manifold design. Yet it directly impacts sealing effectiveness, flow efficiency, corrosion resistance, and cleaning effectiveness. Understanding surface finish metrics helps engineers specify appropriate finishes for their applications.
Understanding Surface Finish Metrics:
Ra (Roughness Average):
Most common metric
Average deviation from mean surface height
Measured in microinches (µin) or micrometers (µm)
Lower Ra indicates smoother surface
RMS (Root Mean Square):
Calculated from same measurement but mathematically different
RMS ≈ 1.1 x Ra (approximately)
Less commonly specified but sometimes encountered
Surface Finish vs. Application:
| Application | Recommended Ra | Why |
|---|---|---|
| General industrial sealing | 32 µin (0.8 µm) | Adequate for standard O-rings |
| Critical sealing | 16 µin (0.4 µm) | High-pressure or demanding seals |
| Hydraulic sealing | 8-16 µin (0.2-0.4 µm) | Prevents leak paths under pressure |
| Sanitary/food contact | 25 µin (0.64 µm) or better | FDA requirements, CIP cleaning |
| High-purity/ultra-clean | 16 µin (0.4 µm) | Reduces particle entrapment |
| General non-sealing surfaces | 63-125 µin (1.6-3.2 µm) | Cost-effective for non-critical |
| O-ring groove faces | 16-32 µin (0.4-0.8 µm) | O-ring specification typical |
Surface Finish vs. Surface Treatment:
Surface finish and surface treatment serve different purposes:
| Surface Characteristic | Purpose | Methods |
|---|---|---|
| Finish (Ra/RMS) | Reduces leak paths, improves flow | Machining, grinding, polishing, electropolishing |
| Treatment | Corrosion resistance, wear resistance | Passivation, plating, coating |
| Cleaning | Removes contaminants | Ultrasonic cleaning, solvent wash |
Impact of Surface Finish on Performance:
Flow Efficiency:
Smoother surfaces reduce friction loss and pressure drop. For systems with high flow rates or low pressure budgets, improving surface finish from 63 µin to 32 µin can reduce pressure drop by 5-15%.
Sealing Effectiveness:
Leak paths form along surface imperfections. O-rings compress into surface valleys, but if valleys exceed 10-15% of O-ring cross-section, leakage can occur even with proper compression.
Corrosion Resistance:
Smoother surfaces have fewer initiation sites for pitting and corrosion. Electropolished surfaces (8-16 µin) demonstrate significantly better corrosion resistance than machined-only finishes (32-63 µin).
Cleanliness:
Rough surfaces trap particulates and bacteria. Smooth surfaces clean more easily and release contaminants during cleaning cycles.

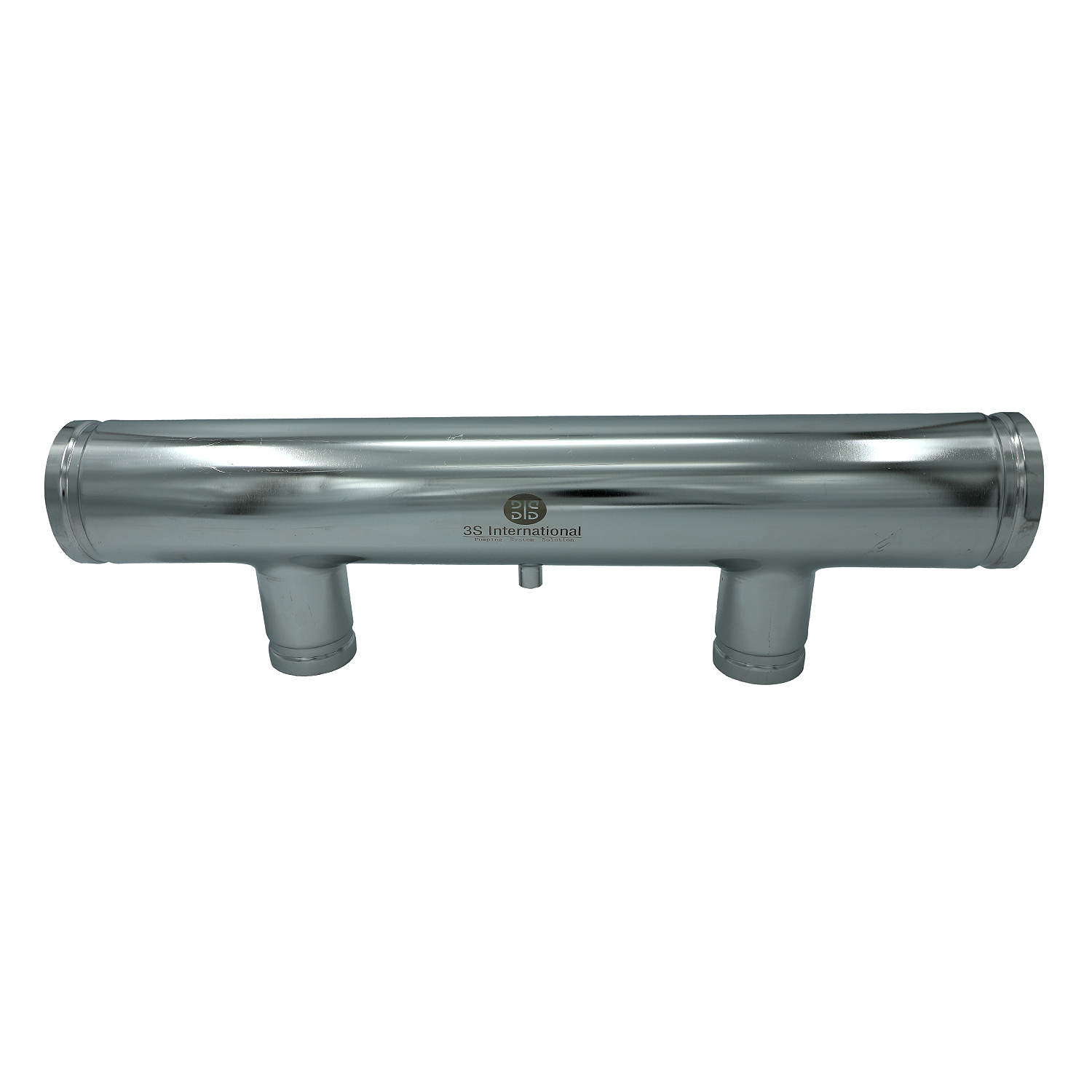

How 3S International Addresses Surface Finish:
Standard finish of 32 µin (0.8 µm) on sealing surfaces
16 µin (0.4 µm) available for demanding applications
Electropolishing service for ultra-clean requirements
Surface finish measurement documentation available
Finish Selection: Specify your application type and cleanliness requirements. Receive recommended surface finish specifications with cost implications.
