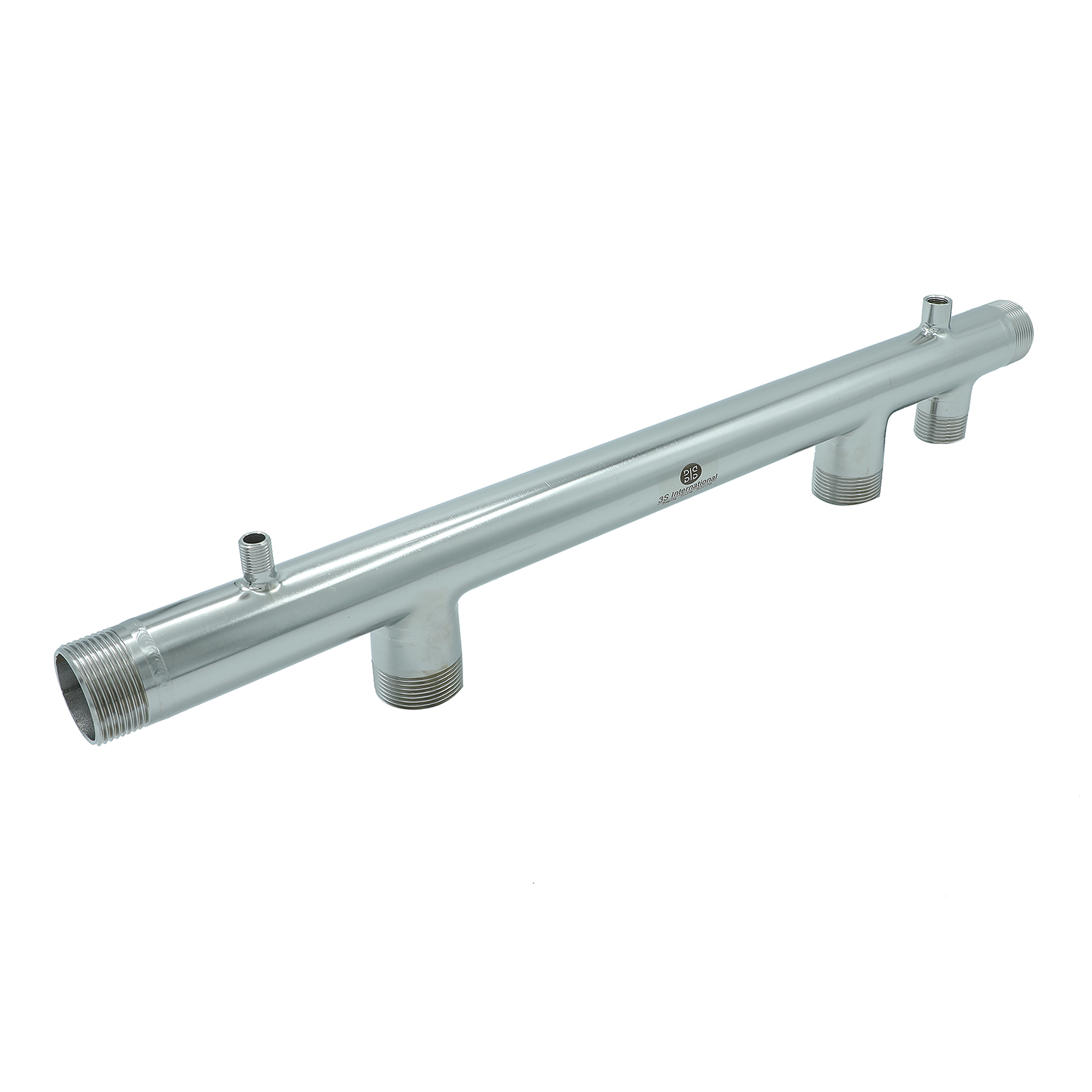

High-Temperature Manifold Design: Material Selection and Thermal Management

Standard manifold materials and designs fail rapidly when exposed to elevated temperatures. Thermal expansion, material creep, seal degradation, and oxidation require specialized engineering approaches for high-temperature applications.

Temperature Ranges and Material Requirements:

High-Temperature Failure Modes:

1. Thermal Expansion Stress
Metal expands predictably with temperature (approximately 0.016mm per meter per 100°C for stainless steel). Constrained expansion creates compressive stresses that can warp manifolds or damage connections.

Solution: Oversized bolt holes, slotted mounting brackets, or guided expansion joints.

2. Gasket and Seal Failure
Elastomeric seals fail above 200°C. PTFE degrades above 260°C. Graphite and metal gaskets required for higher temperatures.

3. Material Creep
Prolonged exposure at elevated temperatures causes gradual deformation under constant load, relaxing bolt torque and creating leak paths.

Solution: Use creep-resistant alloys (321 stainless, Inconel). Specify belleville washers or spring-energized seals to maintain load.

4. Oxidation and Scaling
High-temperature oxidation forms surface scale that can spall, contaminate process fluids, and reduce wall thickness over time.

Solution: Specify alloys with aluminum or chromium content for protective oxide layers.

Thermal Management Strategies:

Insulation: Ceramic fiber blankets or removable insulation jackets reduce heat loss, protect personnel, and maintain process temperature.

Heat Tracing: Electric or steam tracing prevents condensation or freezing in intermittent high-temperature service.

Thermal Breaks: Insulating gaskets or spool pieces between hot manifold and cold piping reduce heat transfer.

3S International High-Temperature Engineering:
Our high-temperature manifold designs incorporate:

• Material selection based on maximum temperature and duration

• Thermal expansion calculations with compensated mounting

• Appropriate seal selection for your temperature range

• Stress analysis verifying integrity at operating temperature

High-Temperature Specification: Submit your maximum operating temperature, cycle frequency, and fluid composition for engineered recommendations.
